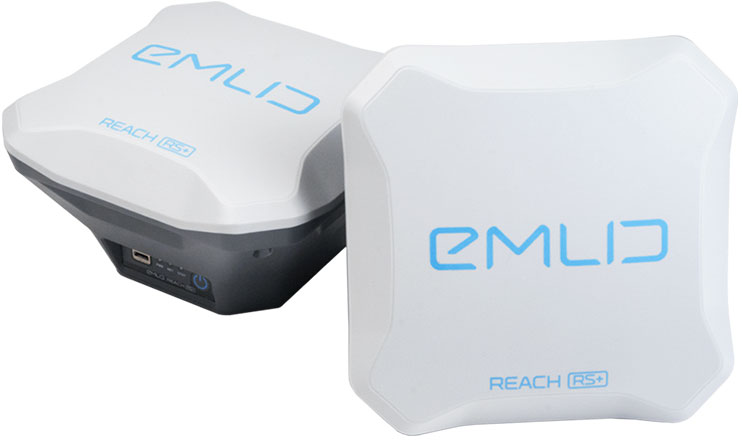

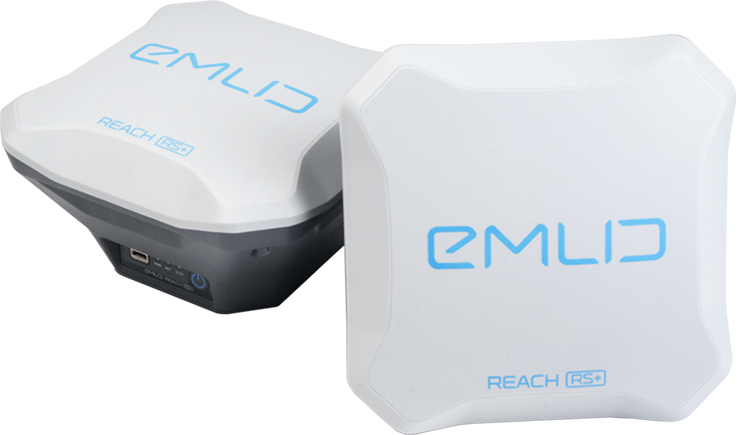

REACH RS+

Single-band
RTK GNSS receiver
with centimeter
precision

For surveying, mapping and navigation.
Comes with a mobile app

$799

Buy

Emlid co-founder Igor Vereninov on what's Reach RS+ and how it works.

Android and iOS

Surveying
with ReachView

The easiest to use software for data collection that is available both for Android and iOS. With ReachView, you can collect and stakeout points and control all the features of Reach receivers, such as setting up a base station, logging RINEX data, and configuring NMEA output.

Point collection with ReachView

Point collection:
create projects, save points, and export in industry standard formats

Record each position as a point with centimeter precise coordinates. Export projects and open them in GIS or CAD software like AutoCAD, ArcGIS, QGIS, and others.

Formats

DXF, CSV, GeoJSON, ESRI Shapefile

Point stakeout with ReachView

Stakeout:
Find points' position on the ground

Stakeout is used to find exact physical locations of points. They can be collected in ReachView or imported from other CAD or GIS software.

Process of stakeout in ReachView has two steps: map view and bulls-eye. Map's purpose is to help you navigate to points on long distances. When you get closer than 40 cm to the point, bulls-eye turns on to make it easier for you to visually match receiver and point.

Formats

CSV, DXF and GeoJSONs

Logging control in ReachView

Logging in RINEX:
record raw data, position, and base correction logs

Record raw data, position and base correction logs. Point collection and recording of RAW data are independent processes and can be used simultaneously. ReachView has a simple and intuitive interface for logging configuration and control.

We provide our version of RTKLib for PPK. It’s free and can be downloaded from our docs.

8 GB

storage

80+ days

of logging at 1 Hz

Connectivity

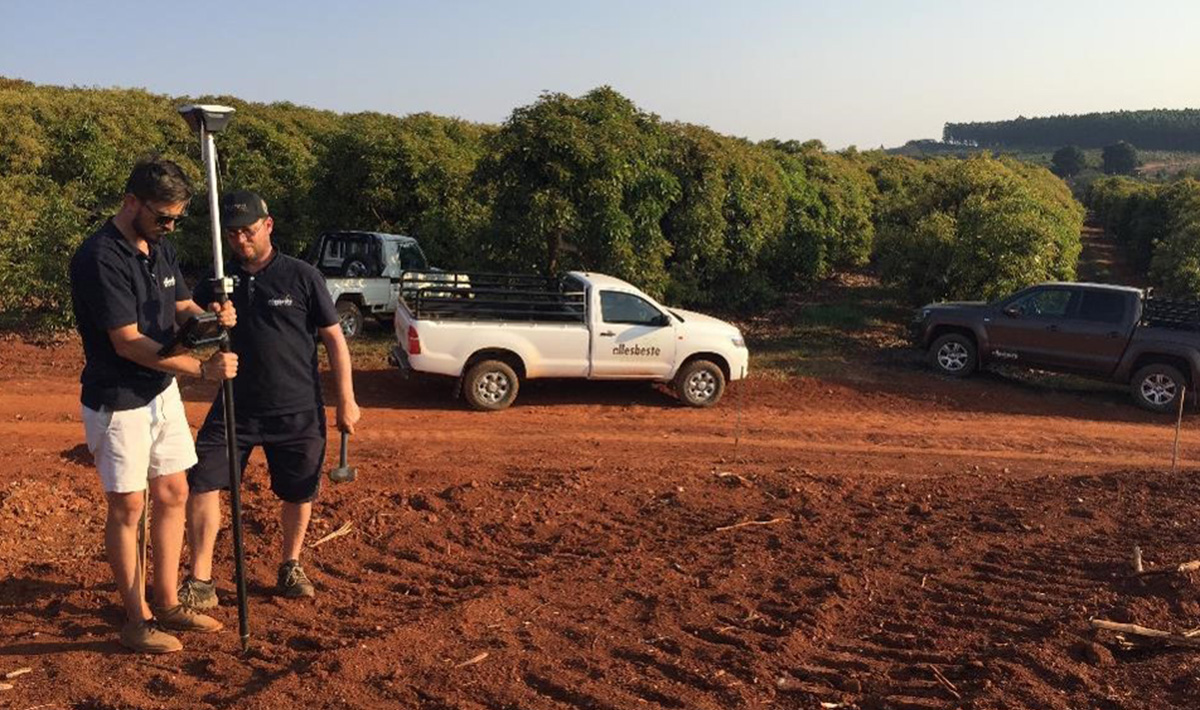

Surveying with Reach RS+

Real-time position
streaming in NMEA

Reach provides data in standard NMEA that is used by most GIS apps. Simply connect your device to Reach over Bluetooth or with a cable, and turn on “Position output” in ReachView.

Reach can turn on and off automatically

Reach is able turn on and off in sync with an external battery connected over RS-232. This helps when the power button is hard to reach. For example, if the receiver is placed on the roof of a tractor.

Compatible apps

MachineryGuide, AgriBus-Navi, Efarmer, Agripilot, and others


Position streaming

Interfaces

RS-232, TCP, Bluetooth

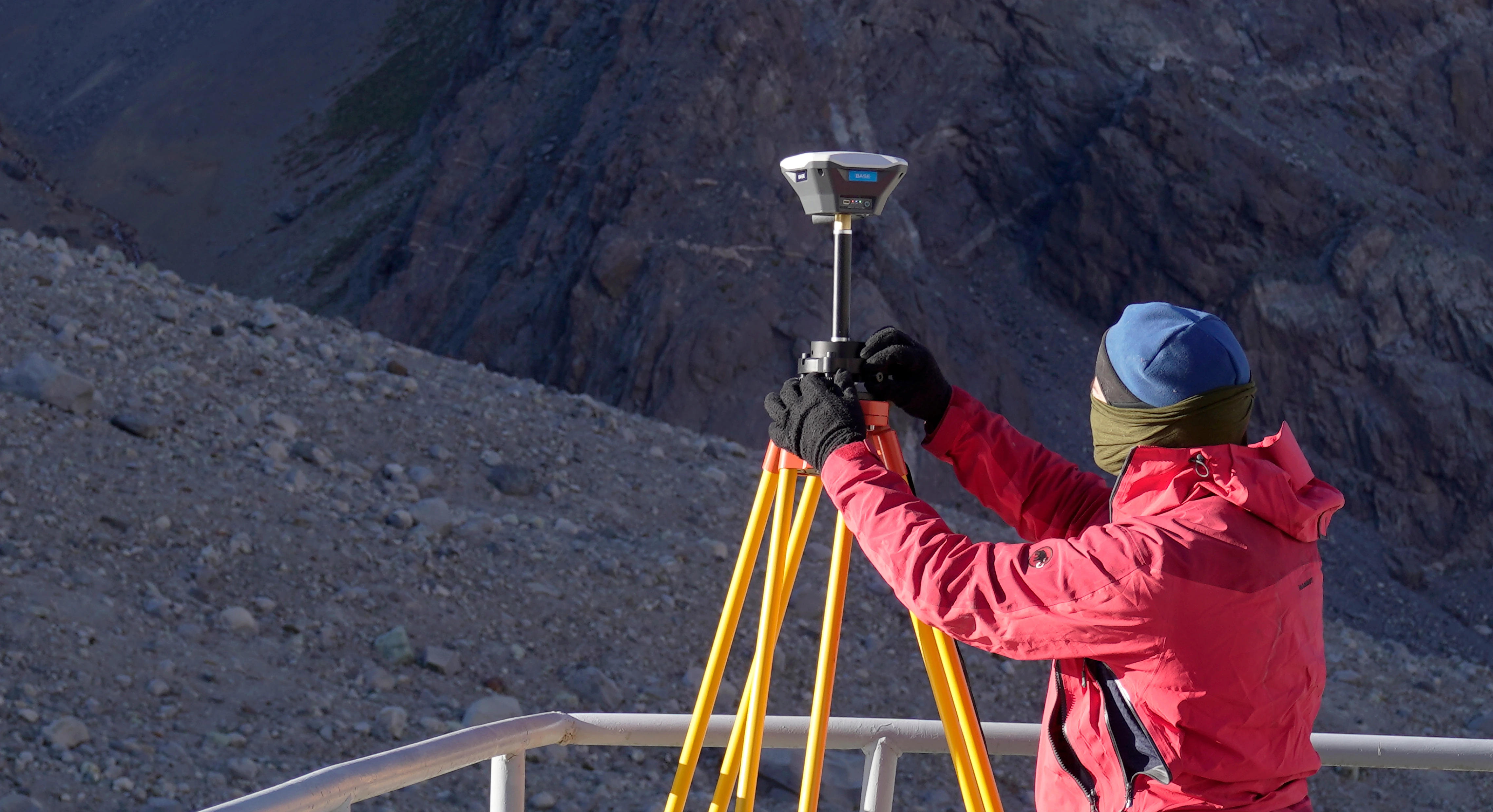

Reach RS+ on a tripod

NTRIP or another Reach
as a base station

Reach RS+ needs a base station as a source of corrections. That’s a requirement for centimeter accuracy in RTK and PPK. Base might be either another Reach RS+ receiver or NTRIP service. VRS is also supported.

Reach RS+ works seamlessly with other Reach receivers over any link.

Input and output corrections

Interfaces

TCP, LoRa, Bluetooth, RS-232, NTRIP

Formats

RTCM3


Max distance from a base

Up to 10 km in RTK
20 km in PPK

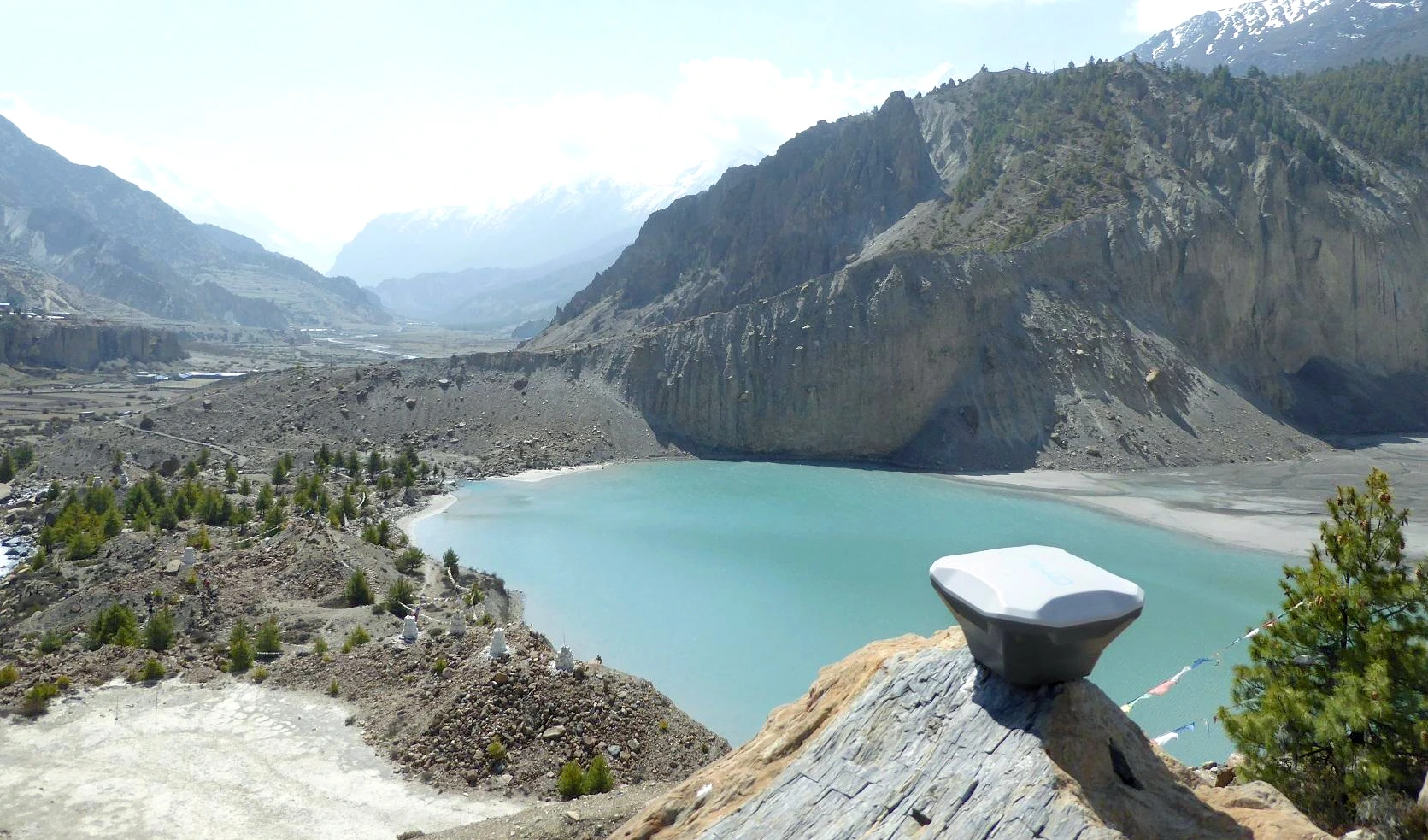

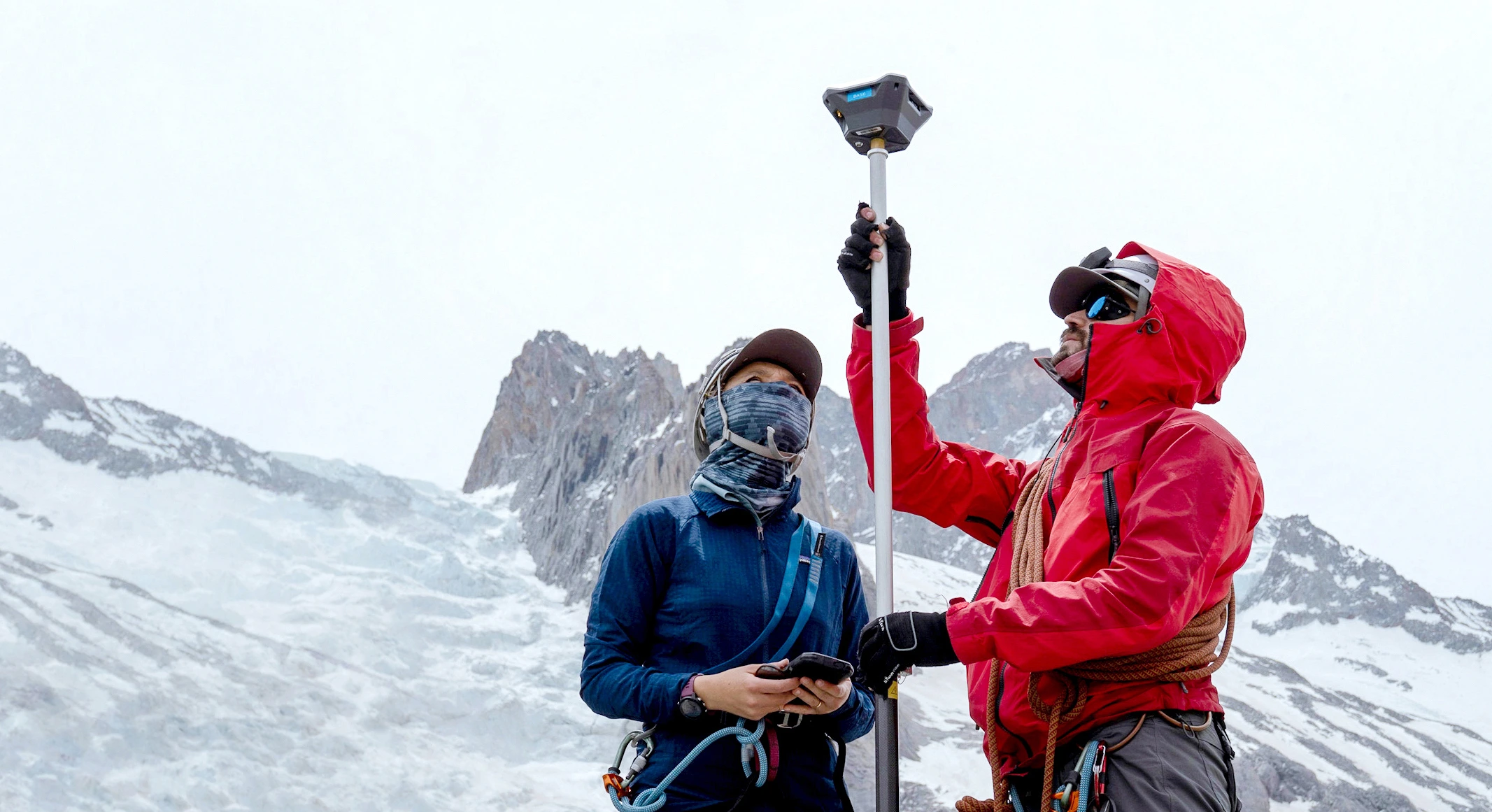

Reach RS+ is designed for harsh conditions.
Dense forests, mountains, frost, heat and water, Reach can handle it all

IP67

Can be held 1 meter deep under water for half an hour.

-20ºС…+65ºС

Working temperature. Isn’t afraid of either heat or cold.

30 hours

Industrial LiFePO4 battery that doesn’t die on cold. Can charge over USB from a powerbank.

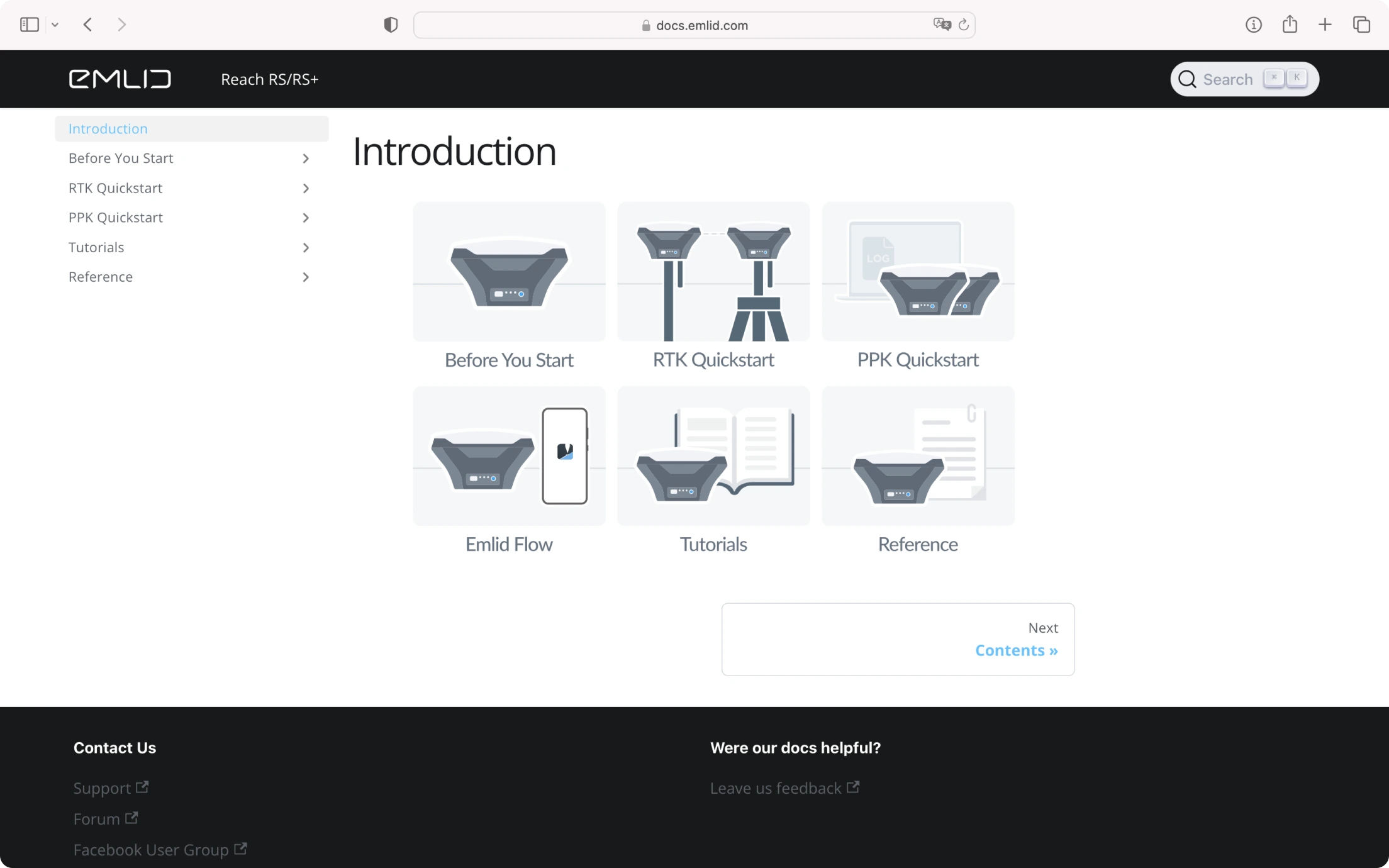

Reach RS+ documentation

Tutorials

Quickstart guides and comprehensive feature overview. Step-by-step tutorials covering most common applications. Regularly updates by our support team according to mostly asked questions.

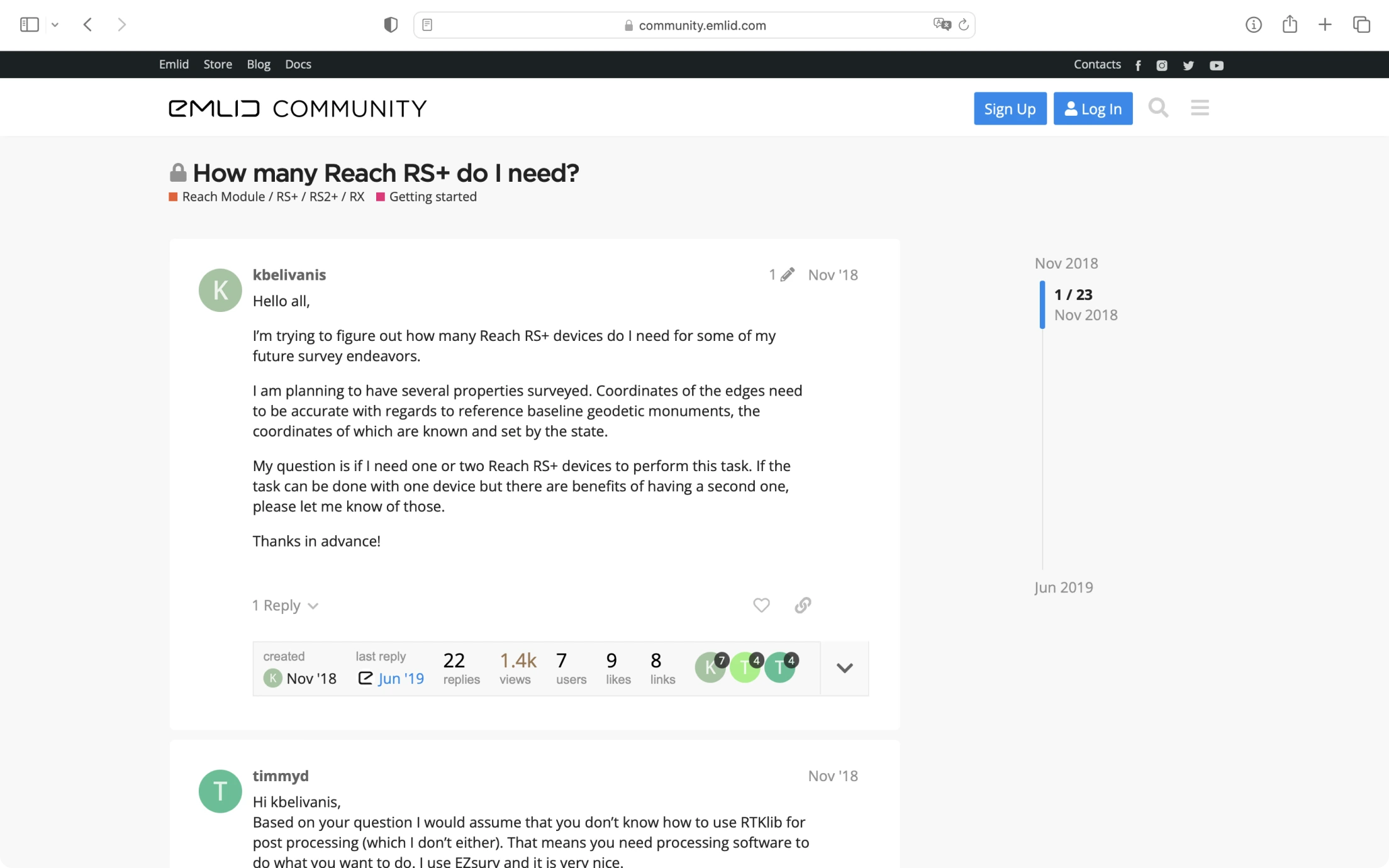

Emlid Community

Community forum

Share your project or ask any question on our community forum to get answers from experienced users and Emlid team. Stories about using Emlid products from users all over the world.

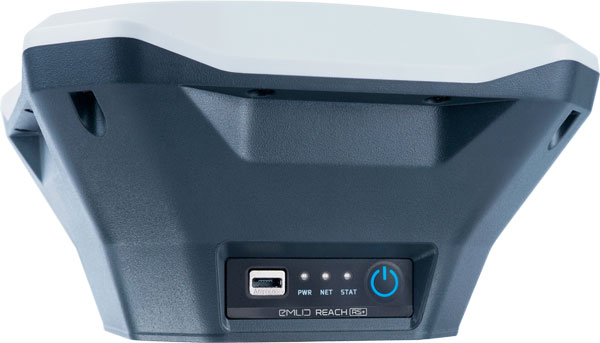

Reach RS+
in Emlid Store

ReachView app and all features of Reach RS+ are included

Specifications

Mechanical

  • Dimensions 145x145x85 mm
  • Weight 690 g
  • Operating tº -20…+65 ºC
  • Ingress protection IP67 (water and dust)

Electrical

  • Autonomy Up to 30 hrs
  • Battery LiFePO4 3.2 V
  • External power input 6–40 V
  • Charging MicroUSB 5 V
  • Certification FCC, CE

Positioning

  • Static horizontal 5 mm + 1 ppm
  • Static vertical 10 mm + 2 ppm
  • Kinematic horizontal 7 mm + 1 ppm
  • Kinematic vertical 14 mm + 2 ppm

Connectivity

  • LoRa radio
  • Frequency range 868/915 MHz
  • Distance Up to 8 km
  • Wi-Fi 802.11b/g/n
  • Bluetooth 4.0/2.1 EDR
  • Ports RS-232, MicroUSB

Data

  • Corrections NTRIP, RTCM3
  • Position output NMEA, LLH/XYZ
  • Data logging RINEX with events
    with update rate up to 14 Hz
  • Internal storage 8 GB

GNSS

  • Signal tracked GPS/QZSS L1, GLONASS G1,
    BeiDou B1, Galileo E1, SBAS
  • Number of channels 72
  • Update rates 14 Hz / 5 Hz
  • IMU 9DOF
